Corrugated sheet forming machine

Corrugated Sheet Rollforming Machine

Brand: Xinhong
Model: xh6506
Certificate: ISO9001
Origin: China

Xinhong Corrugated Sheet Machine design reasonable structure, compact, high precision, high efficiency, flexible.

Function: automatic detection of coil parameters, a key on the volume，a key to reclaim, automatic alignment adjus tment.

PRODUCT DETAILS

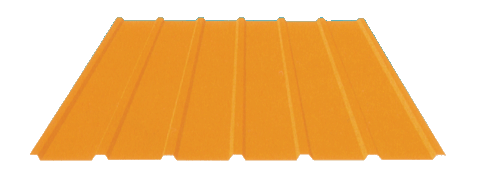

Xinhong Corrugated Roof Tile Roll Forming Machine

Xinhong Corrugated Roof Tile Roll Forming Machine is a cost- effective production line with high production efflciency and stable performance. Forming rollers are designed by Germany COPRA software and plated with hard chrome on surface, service life is prolonged.

Machine is equipped with PLC & electrical accessories of famous brand, such as MITSUBISHI, SCHNEIDER and OMRON, trustworthy and

convenient to operate.

Corrugated Roof Tile Roll Forming Machine Specification:

1. Material Thickness 0.16-0.6 MM

2. Material Width: 914 MM、1219MM

3. Material: Pre-Painted Color Steel Sheet

Metal Waved Roof Tile Roll Forming Machine Main Technical Parameters:

1. Forming Machine Power: 5.5 KW

2. Oil Pump Power: 3.7 KW

3. Oil Pump Pressure: 10 MPa

4. Profile Thickness: 0.16 - 0.6 MM

5. Deciling Width: 914 MM、1219MM

6. Diameter Of Shaft: Φ 72

7. Quantity Of Roller: 18 Groups

8. Decoiler Width: 1000 MM

9. Decoiler Bearing: 10000 KGS

10. Power Supply: 3 Phase 4 Lines AC 415V,60 HZ

11. Total Power: 10 KW

Corrugated Steel Tile Roof Panel Making Machine Production Flow:

Material - + Roll Forming→Cutting-Off - + Profile.

Corrugated Pattern Roof Tile Forming Machine Composition:

1. Single Head Hydraulic -Driven Decoiler, 1 Unit

2. Manual Shearer, 1 Unit

3. Forming Machine, 1 Unit

4. Cut-Off Device, 1 Unit

5. Hydraulic Pump Station, 1 Unit

6. Electronic Control Panel, 1 Unit
