Brand: Xinhong
Model: xh6949
Certificate: ISO9001
Origin: China
Parameter of product
No. | Name | Parameter |
1 | Coil inner diameter | Φ508㎜ |
2 | Coil outside diameter | ≤1800㎜ |
3 | Product weight | Max:15T |
4 | Qty of slitting | 2.0㎜(thickness)≤10 pcs |
5 | Width of product | ±0.05㎜ |
6 | Burr of product | ≤0.05㎜ |
7 | Min width of slitting | 25㎜ |
8 | Range of width for sliter edge | 2～5㎜ |
Parameter of equipment
No. | Name | Parameter |
1 | Speed of cutting | 180m/min |
2 | Speed of coil crossing | 0～15m/min |
3 | Power supply | 440V/60HZ/3Ph |
4 | Capacity | About 250KW |
5 | Worker | About 2～3 person |
6 | Floor space | Length:20m Width:8m |
7 | Function | From left to right |
8 | Machine colour | Request by buyer |

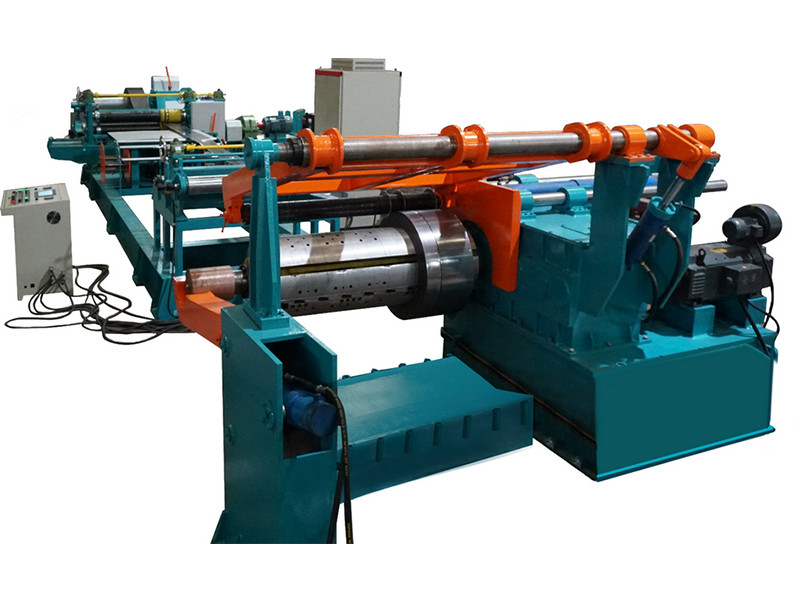

Components of slitting machine:
1). Feeding trolley 1set
2). Hydraulic Uncoiler 1set
3). Rectifying pressure device 1 set
4). Slitting machine 1 set
5) Recoiling machine for waste edge material 2 sets
6). Transfer bridge(use for looping) 1 set
7). Flat type tension device 1 set
8). Rectifying recoiler 1 set
9). Unloader 1 set
10). Hydraulic system 1 set
11). Pneumatic system 1 set
12). Electrical system 1 set
